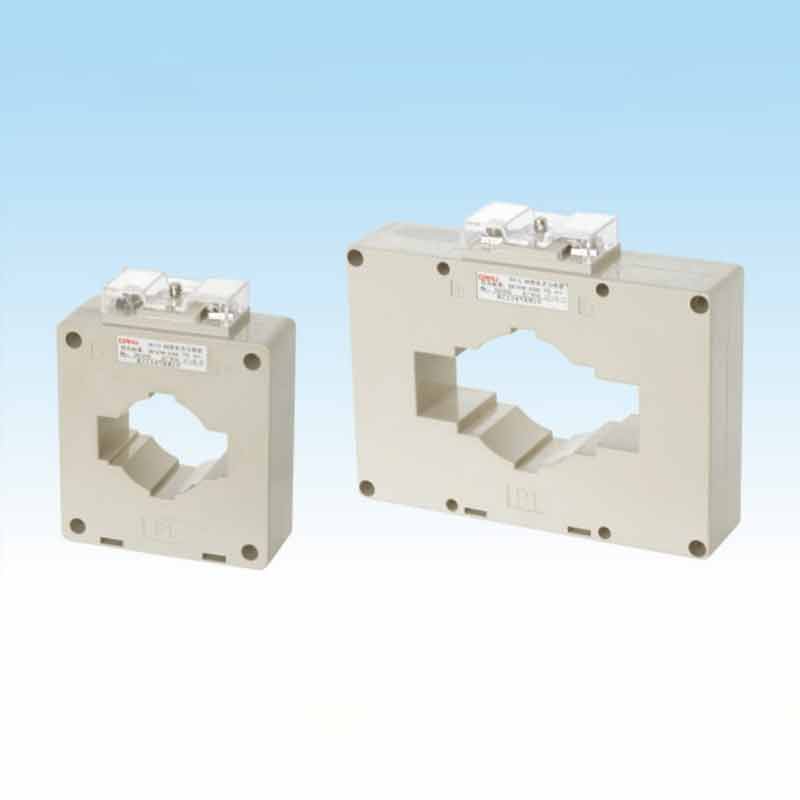

Humilis Voltage Current Transformer
Dahu Electric professio est Sinarum Low Voltage Current Transformer fabrica et elit, si opus parvo pretio quaeris, nos nunc consule!
Mitte Inquisitionem
depictio producti
Ingens selectio de Invenire Voltage Current Transformer e Sinis in Dahu Electric. Praebere professionalem post-venditionem servitium et pretium ius, cooperationem expectamus.
Typus descriptio
Technical data
|
Type |
Rated Current ratio (A)
|
Ratum est secundarium output(VA) |
Core crucis verte numerum |
|||
|
Level 1 |
Level 0.5 |
0.5S level |
Level 0.2 |
|||
|
BH-0.66 I (solidum) (Figura 1) |
5/5 |
5 |
2.5 |
/ |
|
|
|
10/5 |
5 |
2.5 |
|
|
|
|
|
15/5 |
5 |
2.5 |
1 |
|
/ |
|
|
20/5 |
5 |
2.5 |
|
/ |
/ |
|
|
25/5 |
5 |
2.5 |
|
/ |
/ |
|
|
30/5 |
5 |
2.5 |
|
|
|
|
|
40/5 |
5 |
2.5 |
1 |
|
|
|
|
50/5 |
5 |
2.5 |
1 |
/ |
/ |
|
|
75/5 |
5 |
2.5 |
1 |
/ |
/ |
|
|
BH-0.6630 I (Figura II) |
30/5 |
5 |
2.5 |
1 |
|
5 |
|
50/5 |
5 |
2.5 |
|
/ |
3 |
|
|
75/5 |
5 |
2.5 |
|
|
2 |
|
|
75/5 |
2.5 |
/ |
|
/ |
1 |
|
|
100/5 |
2.5 |
2.5 |
|
/ |
1 |
|
|
100/5 |
5 |
5 |
|
/ |
2 |
|
|
150/5 |
5 |
2.5 |
|
|
|
|
|
200/5 |
5 |
5 |
1 |
/ |
1 |
|
|
250/5 |
5 |
5 |
|
/ |
1 |
|
|
300/5 |
5 |
5 |
|
/ |
1 |
|
|
400/5 |
|
5 |
|
|
|
|
|
BH-0.6630IB (Figura III) |
30/5 |
/ |
|
2.5 |
2.5 |
5 |
|
50/5 |
/ |
|
2.5 |
2.5 |
3 |
|
|
75/5 |
/ |
/ |
2.5 |
2.5 |
2 |
|
|
75/5 |
5 |
2.5 |
1 |
/ |
1 |
|
|
10015 |
5 |
2.5 |
|
|
|
|
|
100/5 |
/ |
|
5 |
5 |
2 |
|
|
Type |
Rated Current ratio (A)
|
Ratum est secundarium output(VA) |
Crux-coreturn numerus |
|||
|
Level 1 |
Level 0.5 |
0.5S level |
Level 0.2 |
|||
|
BH-0.6630IB (Figura 3 ) |
150/5 |
/ |
/ |
2.5 |
2.5 |
|
|
200/5 |
/ |
1 |
5 |
5 |
1 |
|
|
250/5 |
/ |
1 |
5 |
5 |
1 |
|
|
300/5 |
/ |
|
5 |
5 |
1 |
|
|
BH-0.6640 I (Figura4 ) |
30/5 |
5 |
2.5 |
/ |
/ |
5 |
|
50/5 |
5 |
2.5 |
/ |
/ |
3 |
|
|
75/5 |
5 |
2.5 |
/ |
/ |
2 |
|
|
75/5 |
2.5 |
/ |
/ |
/ |
1 |
|
|
100/5 |
2.5 |
/ |
1 |
1 |
1 |
|
|
100/5 |
5 |
5 |
/ |
/ |
2 |
|
|
150/5 |
5 |
2.5 |
/ |
/ |
|
|
|
200/5 |
5 |
5 |
/ |
/ |
|
|
|
250/5 |
5 |
5 |
1 |
1 |
1 |
|
|
300/5 |
5 |
5 |
/ |
/ |
1 |
|
|
400/5 |
5 |
5 |
1 |
1 |
1 |
|
|
500/5 |
10 |
10 |
5 |
5 |
1 |
|
|
600/5 |
10 |
10 |
5 |
5 |
1 |
|
|
BH-0.6650 I (Figura5 ) |
150/5 |
2.5 |
/ |
/ |
/ |
|
|
200/5 |
5 |
2.5 |
1 |
1 |
1 |
|
|
250/5 |
5 |
5 |
/ |
/ |
1 |
|
|
300/5 |
5 |
5 |
/ |
/ |
1 |
|
|
400/5 |
5 |
5 |
/ |
/ |
|
|
|
500/5 |
10 |
10 |
5 |
5 |
1 |
|
|
600/5 |
10 |
10 |
5 |
5 |
|
|
|
750/5 |
10 |
10 |
10 |
10 |
1 |
|
|
800/5 |
10 |
10 |
10 |
10 |
|
|
|
1000/5 |
10 |
10 |
10 |
10 |
1 |
|
|
1200/5 |
20 |
20 |
20 |
20 |
|
|
|
BH-0.6660 I (Figura 6 ) |
200/5 |
5 |
/ |
/ |
/ |
1 |
|
250/5 |
5 |
5 |
/ |
/ |
1 |
|
|
300/5 |
5 |
5 |
1 |
1 |
1 |
|
|
400/5 |
5 |
5 |
/ |
/ |
1 |
|
|
500/5 |
10 |
10 |
5 |
5 |
1 |
|
|
600/5 |
10 |
10 |
5 |
5 |
|
|
|
750/5 |
10 |
10 |
10 |
10 |
1 |
|
|
800/5 |
10 |
10 |
10 |
10 |
1 |
|
|
1000/5 |
10 |
10 |
10 |
10 |
1 |
|
|
1200/5 |
20 |
20 |
20 |
20 |
|
|
|
1500/5 |
20 |
20 |
20 |
20 |
|
|
|
Type
|
Rated Current ratio (A)
|
Ratum est secundarium output(VA) |
Crucem-core numerus vertente
|
|||
|
Level 1 |
Level 0.5 |
0.5S level |
Level 0.2 |
|||
|
BH-0.6680 I (Figura7 ) |
300/5 |
5 |
5 |
/ |
/ |
|
|
400/5 |
5 |
5 |
/ |
/ |
|
|
|
500/5 |
10 |
10 |
/ |
/ |
|
|
|
600/5 |
10 |
10 |
/ |
/ |
|
|
|
750/5 |
10 |
10 |
10 |
10 |
1 |
|
|
800/5 |
10 |
10 |
10 |
10 |
|
|
|
1000/5 |
10 |
10 |
10 |
10 |
|
|
|
1200/5 |
20 |
20 |
20 |
20 |
|
|
|
1500/5 |
20 |
20 |
20 |
20 |
|
|
|
2000/5 |
20 |
20 |
20 |
20 |
|
|
|
BH-0.66100 I (Figura8 ) |
600/5 |
10 |
10 |
/ |
/ |
|
|
750/5 |
10 |
10 |
10 |
10 |
|
|
|
800/5 |
10 |
10 |
10 |
10 |
|
|
|
1000/5 |
10 |
10 |
10 |
10 |
|
|
|
1200/5 |
20 |
20 |
20 |
20 |
|
|
|
1500/5 |
20 |
20 |
20 |
20 |
|
|
|
2000/5 |
20 |
20 |
20 |
20 |
|
|
|
2500/5 |
40 |
40 |
40 |
40 |
|
|
|
BH-0.66120 I (Figura 9 ) |
1000/5 |
10 |
10 |
10 |
10 |
|
|
1200/5 |
20 |
20 |
20 |
20 |
|
|
|
1500/5 |
20 |
20 |
20 |
20 |
1 |
|
|
2000/5 |
20 |
20 |
20 |
20 |
|
|
|
2500/5 |
40 |
40 |
40 |
40 |
|
|
|
3000/5 |
40 |
40 |
40 |
40 |
|
|
|
4000/5 |
40 |
40 |
40 |
40 |
1 |
|
Quaeso providere sequenti notitia ponens ordinem
1 Productum exemplar ac fenestra latitudo;
2 Rated ratio current;
3 Ratum output et accurate genus referens; e.g.: cum TRANSFIGURATOR ordinans BH-0.66 I type. Fenestra latitudo 30mm est, ratio currentis aestimata est 200/5A, output aestimatum est 5VA, accurate genus est 0.5. Ordo code est: BH-0.66301200 /5A 1 turn 5VA class 0.5.
4 Quaeso fac cum fabrica, si qua est specialis necessitas.
Dimensio altiore drawing
