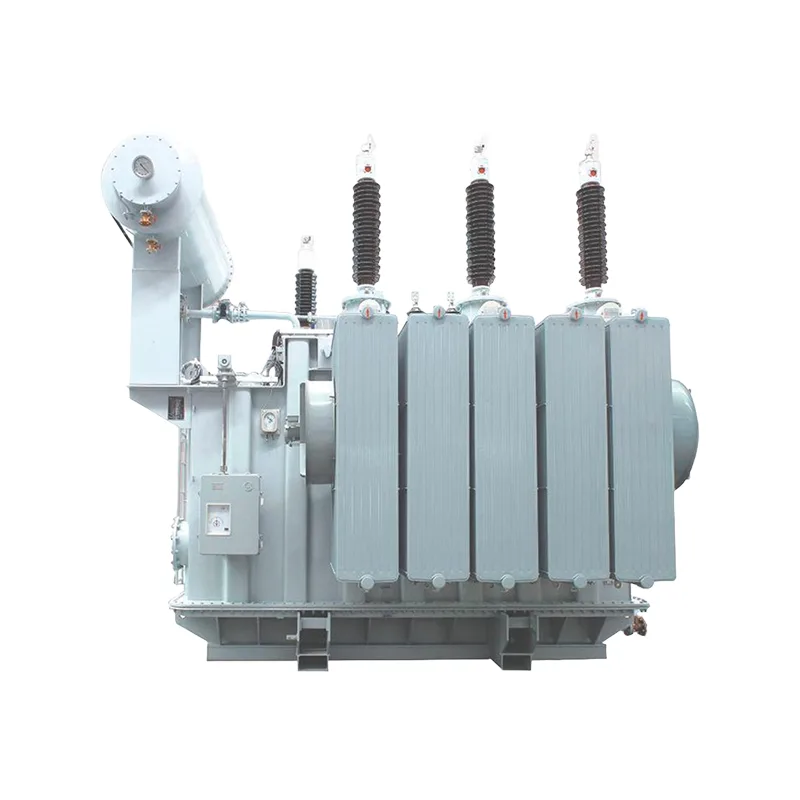

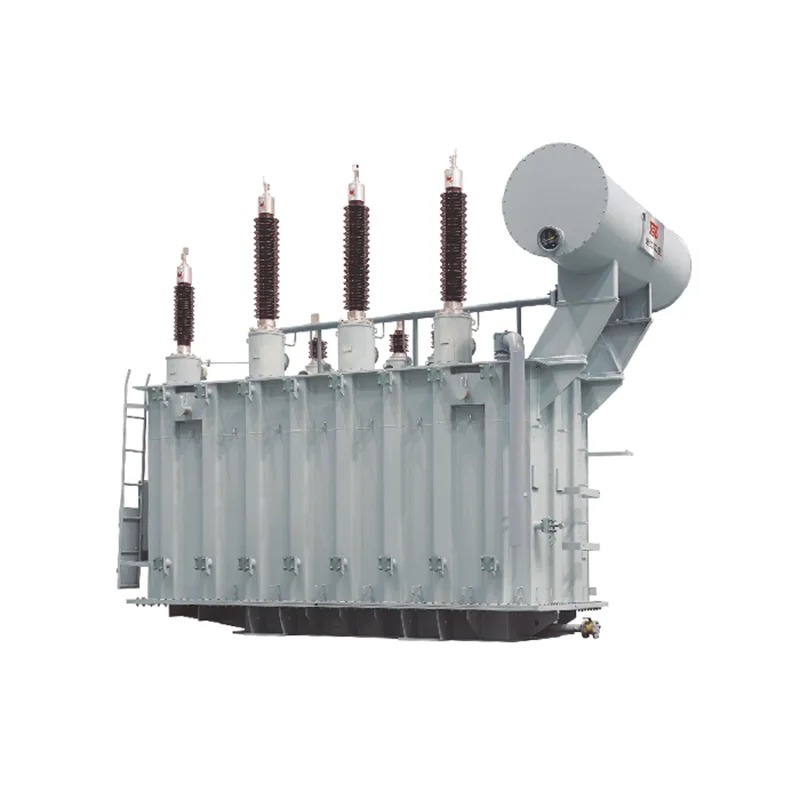

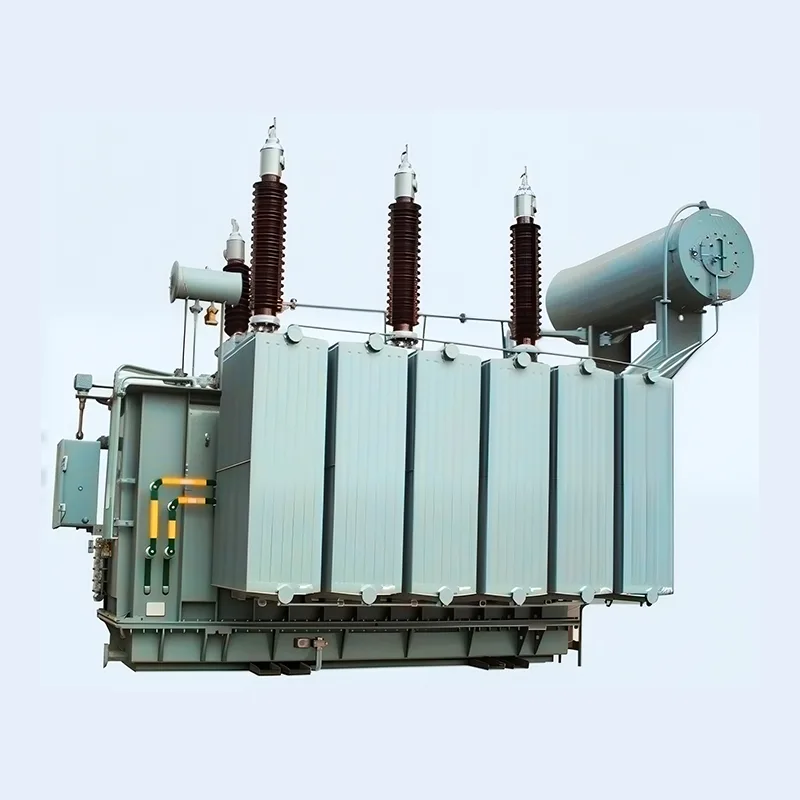

110KV Oil-Power Transformer immersus

Dahu Electric opificem professio est et copia 110KV Olei-Immersi Transformers in Sinis. Hoc productum est valde stabilis, sumptus-efficax et certa in effectu, et apta potentiae plantae, substations, ac magnae conatibus industrialibus, fodiendis et petrochemicis.

Mitte Inquisitionem

depictio producti

Product Details

1. Princeps pressura transformator, utere programmate analysis Toshiba Japanese et societas nostra singulari ratione ac sanatione procedendi. Ut ad productionem perficiendam curandam, designat et probamus in 110KV nucleum, spiram, corpus machinae, filum plumbeum, piscinam oleum et alias machinae partes designamus.

2. Productum nostrum SSZ11-40000/110 transiit brevem circulum ferens facultatem et omnia usitata genera experimentorum Nationalis Transformer Qualitatis Supervisionis et Inspectionis Centre.

3. Hoc productum proprietates habet stabilitatis, oeconomiae, constantiae et tutelae environmental, et aptae sunt potentiae plantarum, substations et magnae industriae, fodiendi et inceptis petrochemicis.

Product Commoda

1° Consignata et insulata structura securitatem personae praestare potest.

2、Economicus et efficax ad redigendum damnum retis et operandi sumptus.

3、110KV Power Transformer Oleum-immersum non solum pro retis anulis sed etiam terminalibus adhibetur.

4、 Minimum damnum, humilis strepitus, superior effectus.

5、 Minimum temperies, onerare facultatem.

6、 Translator peculiares structuras adoptat eiusque commoda praestantia qualitas magni pretii est.

Technical Parameter

6300kVA~ 120000kVA duos flexuosos transformator cum NVTC

Facultatem rated (kVA)	Rated intentione et percussoque range			Vector group	Non-loa malus curent (%)	Impedimentum voltage (%)	Nullus onus damna (kW)	Ad onus damna (kW)
Facultatem rated (kVA)	Altum votum	Ictibus range	Minimum voltege	Vector group	Non-loa malus curent (%)	Impedimentum voltage (%)	Nullus onus damna (kW)	Ad onus damna (kW)
6300	110,121	*2x2.5%	6.3,6.6; 10.5,11	YNd11	0.77	10.5	9.3	36
8000					0.77		11.2	45
10000					0.72		13.2	53
12500					0.72		15.6	63
16000					0.67		18.8	77
20000					0.67		22	93
25000					0.62		26	110
31500					0.6		30.8	133
40000					0.56		36.8	156
50000					0.52		44	194
63000					0.48		52	234
75000					0.42		59	278
90000					0.38	12-14	68	320
120000					0.34	12-14	84.8	397

6300kVA ~ 100000kVA tres flexuosas commutator cum NVTC

Ratum facultatem (kVA)	Rated intentione et percussoque range			Vector grOA	Non-lond current (%)	Impedimentum voltage (%)		Nullus onus damna (kW)	Ad onus damna (kW)
Ratum facultatem (kVA)	Princeps voltage	Medium voltage	Humilis voltage	Vector grOA	Non-lond current (%)	Step up	Descende	Nullus onus damna (kW)	Ad onus damna (kW)
6300	110=2* 2.5%,121 *2x2.5%	35,38.5	6.3,6.6; 10.5,11	YNyn0d11	0.82	HV-MV; 17.5-18.5 HV-LV:10.5 MV~LV:6.5	HV-MV: 10.5 HV-LV: 17.5-18.5 MV-LV:6.5	11.2	47.0
8000					0.78			13.2	56.0
10000					0.74			15.8	66.0
12500					0.70			18.4	78.0
16000					0.66			22.4	95.0
20000					0.65			26.4	112.0
25000					0.6			30.8	133.0
31500					0.6			36.8	157.0
40000					0.55			43.6	189.0
50000					0.55			52.0	225.0
63000					0.50			61.6	270.0
75000					0.50			70.2	307.7
80000					0.50			73.7	323.0
100000					0.50			87.1	381.8

6300kVA ~ 100000kVA duo flexuosa commutator cum OLTC

Ratum facultatem (kVA)	Rated intentione et percussoque range			Vector group	Non-oad curent (%)	Impedimentum votage (%)	Damna non-damna (kW)		Ad onus damna (kW)
	Highveitage	Ictibus range	humilis voltag0
6300	110	*8x 1.25%	6.3,6.6; 10.5.11	YNd11	0.8	10.5	10		36
8000					0.8		12		45
10000					0.74		14.2		53
12500					0.74		16.8		63
16000					0.69		20.2		77
20000					0.69		24		93
25000					0.64		28.4		110
31500					0.64		33.8		133
40000					0.58		40.4		156
50000					0.58		47.8		194
63000					0.52		56.8		234

75000
					0.63			64.7	266.7
80000					0.63			67.9	297.9
100000					0.63			80.3	330.9

6300kVA ~ 100000kVA tres flexuosas commutator cum OLTC

Ratum facultatem (kVA)	Rated intentione et percussoque range			Vector grou.p	Nullus onus current (%)	Impedimentum voltage (%)	Nullus onus damna (kW)	Ad onus damna (kW)
Ratum facultatem (kVA)	Highvcitage	Medum voltage	Humilis valtage	Vector grou.p	Nullus onus current (%)	Impedimentum voltage (%)	Nullus onus damna (kW)	Ad onus damna (kW)
6300	110±8x 12.5%	35,37.38.5	6.3,6.6; 10.5.11	YNyn0d11	0.95	HV-MV: 10.5 HV-LV:17.5~18.5 MV-LV:6.5	12.0	47
8000					0.95		14.4	56
10000					0.89		17.1	66
12500					0.89		20.2	78
16000					0.84		24.2	95
20000					0.84		28.6	112
25000					0.78		33.8	133
31500					0.78		40.2	157
40000					0.73		48.2	189
50000					0.73		56.9	225
63000					0.67		67.7	270
75000					0.84		77.2	307.7
80000					0.84		81.0	323
100000					0.84		95.7	381.8
