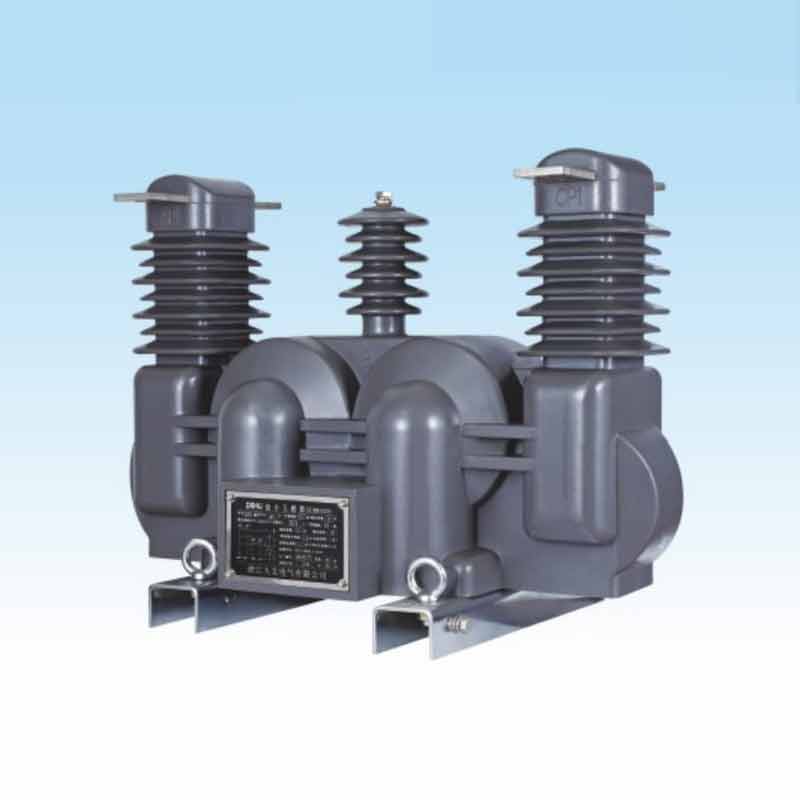

10kv Instrumenti Composita Transformer

Dahu Electric est unus e clarissimis Sinis 10kv Composita Instrumenti Transformantis fabrica et elit. Nostrae officinas speciales in fabricandis 10kv Instrumenti Transformatoris Combinatae sunt. Gratam emere 10kv Instrumenti Transformatoris Combinatae a nobis. Omnis postulatio a clientibus intra 24 horas respondetur.

Mitte Inquisitionem

depictio producti

Grata ad Lupum vel nativus 10kv Instrumentum Transformer Combinatum ex officina nostra quovis tempore. Te praebebimus officinas discount prices pro fructibus nostris. Dahu Electric est 10kv Instrumenti Transformatoris deducta fabrica et elit in Sinis.

Typus descriptio

Technical data

Parameter voltage

Type

Ratio voltage Rated

(V)

Sagaciter genus et ratedsecondaryoutput

(VA)

Max.output

(VA)

Ratedinsulationlevel

(kV)

JLSZV2-6W

6000/100

0.2--2×20

2×400

7.2/32/60

JLSZV2-10W

10000/100

12/42/75

Parameter current pars

Rated prima vena (A)	Unius transformatio ratio	Accuracy classand ratedsecondaryoutput (VA)	1s thermalcurrent(ka)	Rated dynamiccurrent (kA)
Rated prima vena (A)	Unius transformatio ratio	0.2S	1s thermalcurrent(ka)	Rated dynamiccurrent (kA)
7.5-10-15	7.5	10	1.0	2.5
10-15-20	10		1.5	3.75
15-20-30	15		2.4	6.0
20-30-40	20、25		3.0	7.5
30-40-50	30		4.5	11
40-50-75	40		6.5	16.5
50-75-100	50		9	22.5
75-100-150	75		12	30
100-150-200	100		16	40
150-200-300	150		24	60
200-300-400	200、250		32	80
300-400-500	300		45	80
400-500-600	400		60	100
500-600-800	500-1000		80
600-800-1000	500-1000		80
